Building regular shapes

Congruence transformation. One can also build regular shapes, such as for example a “spheroid.” The parameters to do this can be entered as follows::

#Lcc input file.
LCC{
 JobName=                 AgSpheroid        #Or any other name

 TypeOfLattice=           FCC
 LatticePoints=           50             #Number of point in each direction
 LatticeConstanta=        4.08
 AtomType=                Ag

 ClusterType=             Spheroid
 AAxis=                   10       #Radius in Ang for x direction
 BAxis=                   10      #Radius in Ang for y direction
 CAxis=                   5       #Radius in Ang for z direction
}

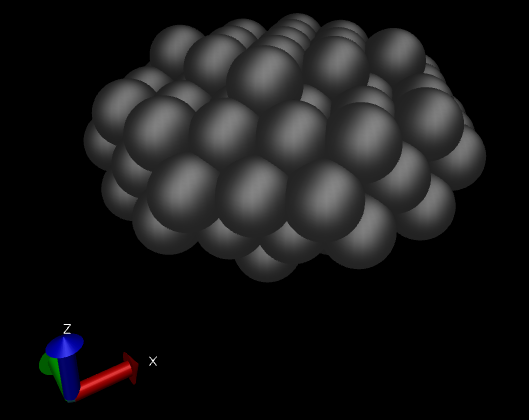

This will produce the following “oblate”:
